Torque capacity calculation of involute splines.

Developer: Dav -Trocoide
App Size: varies with devices
Release Date: Mar 9, 2015
Price: $1.49
Price
$1.49
Size
varies with devices

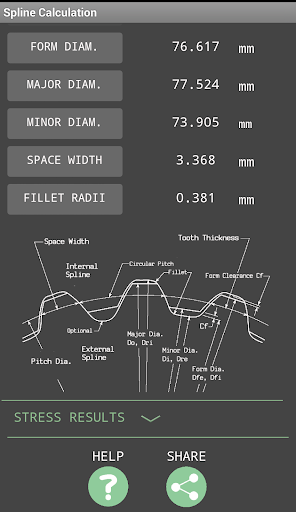

Screenshots for App

Mobile
This tool is able to provide the Root Shear stress, Pitch Shear Stress, Contact stress of an Involute spline geometry under a defined torque.
This tool uses the calculation methodology defined by multiple engineering books and standards. As well as the experience gained using it on different projects.
This tool can be used for an initial geometry definition, It would provide you valuable information to help you to choose the right path design.
Full version can store the data and share it by mail, notes or other means.
Show More
Show Less
More Information about: Involute Spline Calculation
Price: $1.49
Version: 1
Downloads: 100
Compatibility: Android 2.1
Bundle Id: appinventor.ai_Davermar.Spline_torque
Size: varies with devices
Last Update: Mar 9, 2015
Content Rating: Everyone
Release Date: Mar 9, 2015
Content Rating: Everyone
Developer: Dav -Trocoide
