Mobile CAM CNC is cycle-based CNC CAM software generating g-code compatible with FANUC/HAAS controller.Integrated 15 CNC cycles cover most typical CNC tasks.

Main features of Mobile CAM CNC
- combines the operation automatically if they use the same tool to reduce the time required to obtain the final product
- supports new and old CNC machines, so you can choose the option with or without full coolant through
- no matter in what order you add the operation, Mobile CAM CNC will put them in order *
- separate User Interface(UI) for tablets or mobiles to increase your User Experiences(UX)
- 15 operations (covers most typical CNC operations) including 2 smart cycles *
- 4 patterns
- 22 materials
- 5 tapping standards (CORSE, FINE, BSP, UNC, UNF)

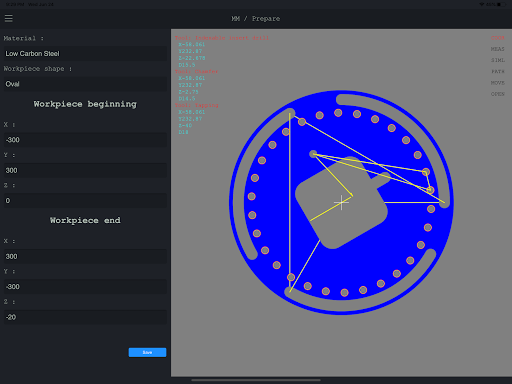

- simulator(see coordinates, check distance between points, play simulation of tool path, quick access to selected operation, move operations and move & copy operations, delete operations)
- subroutine, full code mode
- decimal point (especially in Europe it will cause you a lot of problems if you forget to insert)
- tool magazine limit:30 tools
- automatically generate information about the tool in code
- automatic insertion code of the following tool
- metric / imperial mode
- an automatically generated comment in the header containing all the tools needed to perform the required operation
- highlights code to increase readability e.g. Z in red means dangerous, be careful
- uses the simplest g-code (the code generated by Mobile CAM CNC is easy for beginners to understand)
- generates a tool list with the most important data
- Mobile CAM CNC will let you know if it has created an additional tool by displaying a red circle in the upper right corner of the top bar
- line number (increments by 1, 5 or 10)
- save as: txt, cn, cnc file

Mobile CAM CMC is extremely powerful CNC software, which you, dear user, can improve by sending us the feedbacks!

Mobile CNC CAM includes 15 CNC cycles:
- Smart Tapping
- Smart Drilling
- boring/reaming
- circular face milling
- rectangular face milling
- linear face milling
- linear face milling 2
- linear face milling 3
- linear face milling 4
- circular shoulder milling
- rectangular shoulder milling
- circular pocket milling
- rectangular pocket milling
- slot milling
- circular slot milling

* Idea of the Smart Cycles: ”Don't think anymore how to do, but what to do”

Why are the Smart Cycles so amazing?
Because the Smart Cycles only requires: type of operation, depth and pattern.

See below what the Smart Drilling Cycle and Smart Tapping Cycle can do for you:
- adds central drill, if hss drill will be used
- adds chamfer operation (user can deactivate)
- adds an intermediate drill for deep drilling (if the drilling is deeper than 20 x the diameter of the drill bit)
- selects a right canned cycle depending on the working depth and the type of drill bit
- selects the coolant flow according to the drill bit
- selects the best drill bit among the tools in the magazine
- calculates the feed rate and feed rate
- adjusts the feed rate and feed rate depending on the workpiece materials, working depth, etc.
- assigns the required depth for preliminary operations
- reacts of any change in the tool magazine

Did you know that Mobile CAM CNC has an integrated algorithm that puts the operations added by the user in the correct order. Here is the order after going through the algorithm:

1.Face milling
2.Shoulder milling
3.End milling
4.Center drilling
5.Drilling
6.Chamfer milling
7.Tapping
8.Boring and reaming

Mobile CAM CNC combines the operation automatically if they use the same tool to reduce the time required to complete a task.

You can find a lot of useful information on our website in the FAQ section:https://mobilecamcnc.github.io/products/faq.html

Thank you for purchase Mobile CAM CNC
