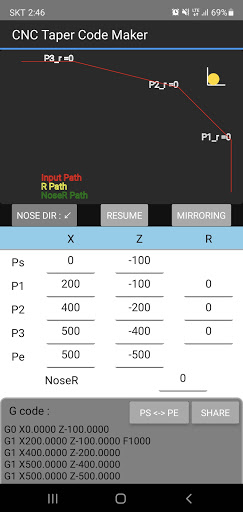

It is an app that generates a machining code that reflects the taper corner R value and NoseR value on the CNC lathe.
You can designate three corner positions between Ps and Pe, and if you enter R value for each position, it is reflected in the coordinates according to the entered value and a machining code is generated.
If you input NoseR value, coordinates reflecting NoseR value are created. If you press'NOSE DIR' button, the direction of the tool changes, and coordinates and machining code are generated according to the changed tool.
The upper coordinate display can be enlarged/reduced/moved and is initialized with the'RESUME' button.
This app generates a G code that reflects the Taper Corner R value and nose R value on the CNC lathe.
You can specify the three corner positions between Ps and Pe, and if you enter the R value for each position, it is reflected in the coordinates according to the entered value and a machining code is generated.
inputting the NoseR value produces coordinates that reflect the NoseR value, and pressing the'NOSE Dir' button changes the direction of the tool and creates coordinates and G codes according to the changed tool direction.
The coordinate display at the top is zoomable/moveable and initialized with the'RESUME' button.
