The app controls the tester TG omni 1 directly via the Bluetooth interface and has an integrated management software for customers, samples and performed tests / protocols.
The following measurement functions can be performed with the current version of the app depending on existing hardware:
- Test according to DIN VDE 0701-0702 / ÖVE 8701-1-2
o Protection class I ( with PE ) active ( differential current )
o Protection class II ( without PE ) active ( differential current )
o Extension
o Class I with current probe for three-phase loads
o Fixed Connection
- Test according to DIN VDE 0544-4 / IEC / EN 60974-4 - Arc Welding Equipment
O Protection class I ( with PE ) active ( differential current )
O Protection class II ( without PE ) active ( differential current )
o Class I with current probe for three-phase loads
o Fixed Connection
- Test according to DIN VDE 0751-1 / IEC / EN 62353 - Medical Devices us systems
o Protection class I ( with PE ) active ( differential current )
o Protection class II ( without PE ) active ( differential current )
- Testing of RCD - portable RCDs
- Test with 10 A
The data management include customer and unit under test/ Master data and applicable for each sample test ( such as standard , protection class , length and cross section of the connecting cable , heat output ) .
In retests is accessed by means of the unique identification number ( by manual entry or scanning a barcode ) to the stored data , whereby the test can be easily performed without any further input .

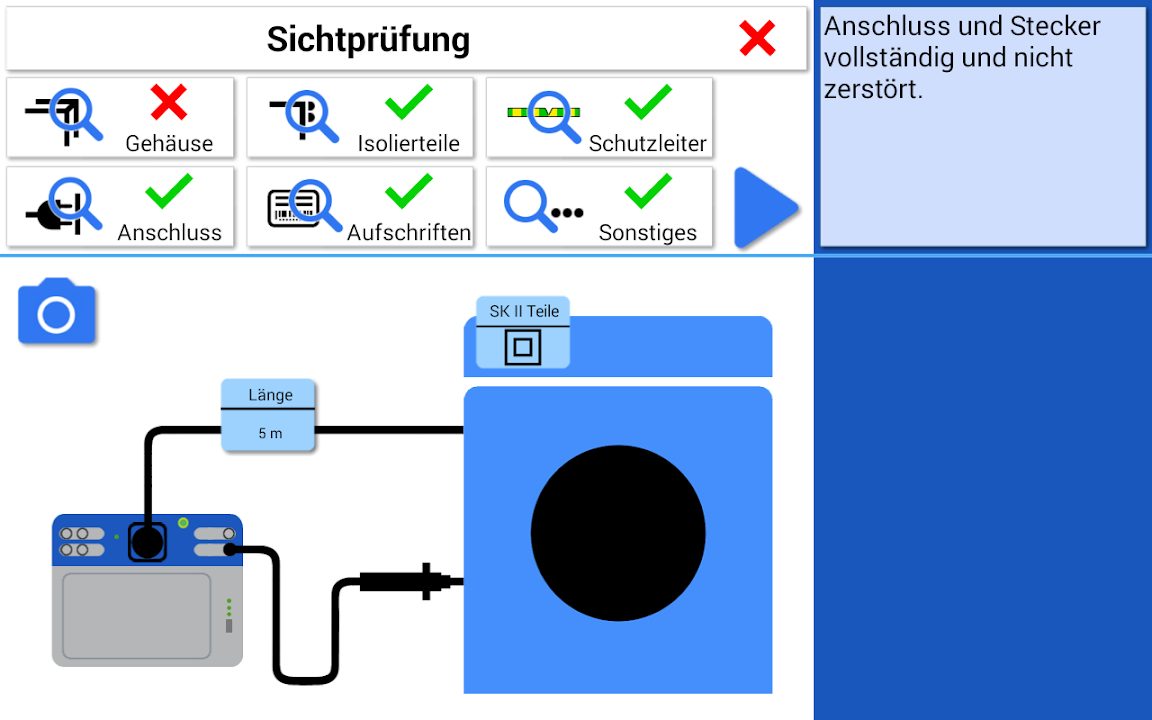

During each measurement processes diagrams are displayed, such as the measurement of the physical functions
When an error occurs photos and a remark can be inserted .
Test reports are automatically created at the end of the test with the images in PDF format and stored along with the database of the master and test data. The data from the database are accessible at any time, records can be recreated
