Boolean Algebra
Boolean Algebra

Boolean Algebra

From K-Map to circuit diagrams

Developer: Gaurav Mathur
App Size: 47.8 MB
Release Date: May 13, 2020
Price: FREE
4.1
23 Ratings
Size
47.8 MB

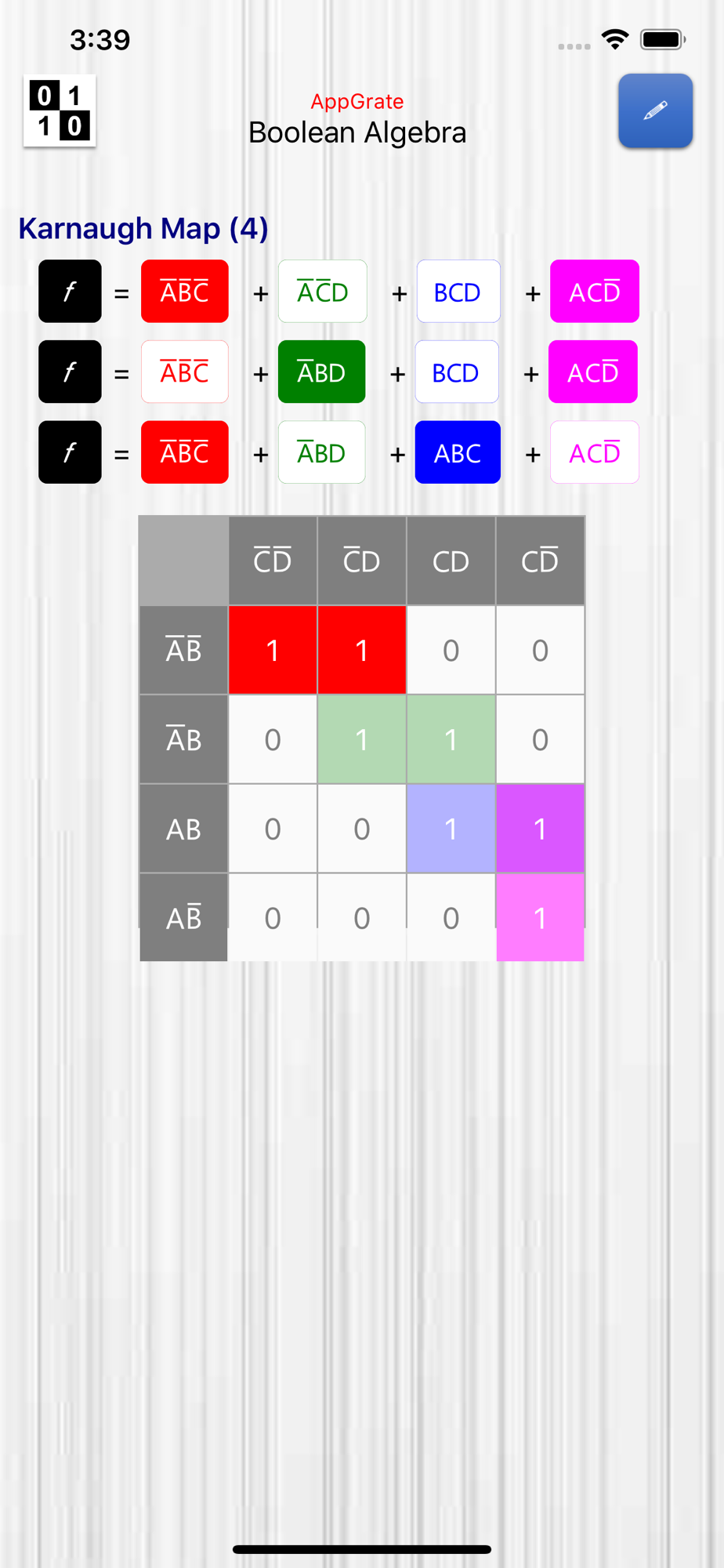

Screenshots for App

iPhone
iPhone X

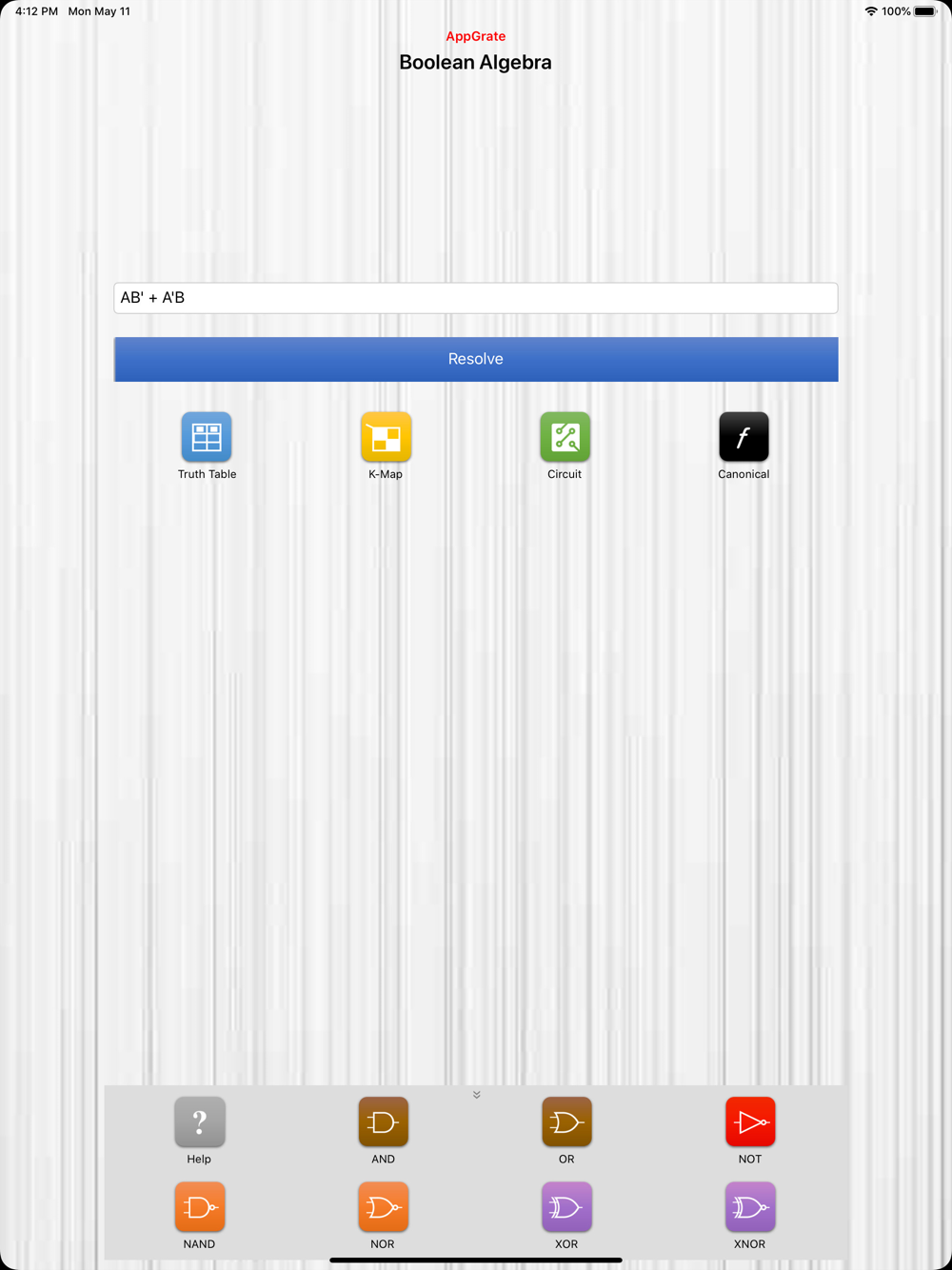

More Screenshots for iPad
After enormous success in desktop for over a decade, the original "Boolean Algebra" app is here on iOS.

What it does, well almost everything.
- Resolve complex Boolean expressions.
- Directly update K-Map and derive minimized solutions (all possible minimal solutions, not just one).
- Update Truth table and generate minimized K-Map values, corresponding circuit, and lot more.
- View and interact with minimized circuit. You can also switch between all the minimal solutions available.
- Tapping on the variable name in the circuit will toggle its value, zero or one, and update the circuit accordingly.
- You also have an option to view Sum of Products, Product of Sums, Min terms and Max terms.
- Interactive section(s) to learn more about all the gates (AND, OR, NOT, XOR, XNOR, NAND and NOR)
- Option to change variable order in K-Map
- Dark Mode

What is next?
- Quick search for minimized solution.
- Easy to verify answers with explanation (why it is wrong)
- Option to generate circuits using universal gates
- Adding "do not care" option
- Support for more than four variables
- Zoom in/out in circuit
Show More
Show Less
Boolean Algebra 1.8 Update
Jan 12, 2022 Version History
Updates in Settings: Added option to change variable order in K-Map. Added option to reset color scheme to default for dark and light themes. Fixed minor bugs.

~Gaurav Mathur
More Information about: Boolean Algebra
Price: FREE
Version: 1.8
Compatibility: Requires Requires iOS 8 or later
Size: 47.8 MB
Genre: Education
Release Date: May 13, 2020
Last Update: Jan 12, 2022
Content Rating: 4+
Developer: Gaurav Mathur
