Avionics Pro contains virtually every tool needed to quickly solve homework problems and preview electronic lab experiments for the student who is completing a course of study to become an Aircraft Electronics Technician (AET). Specifically, it emphasizes Introductory Aircraft Avionics, featuring real world circuits that have been tested using an industry standard circuit simulator (Multisim) as well as in an actual electronics lab environment.


Beyond the AET course, Avionics Pro is a handy refresher for graduate technicians in the industry as well as students looking to expand their understanding through higher education engineering courses.



Avionics Pro features graphics support for all standard Apple phones and iPads.



SECTIONS:



- IMPEDANCE
-- Series LRC

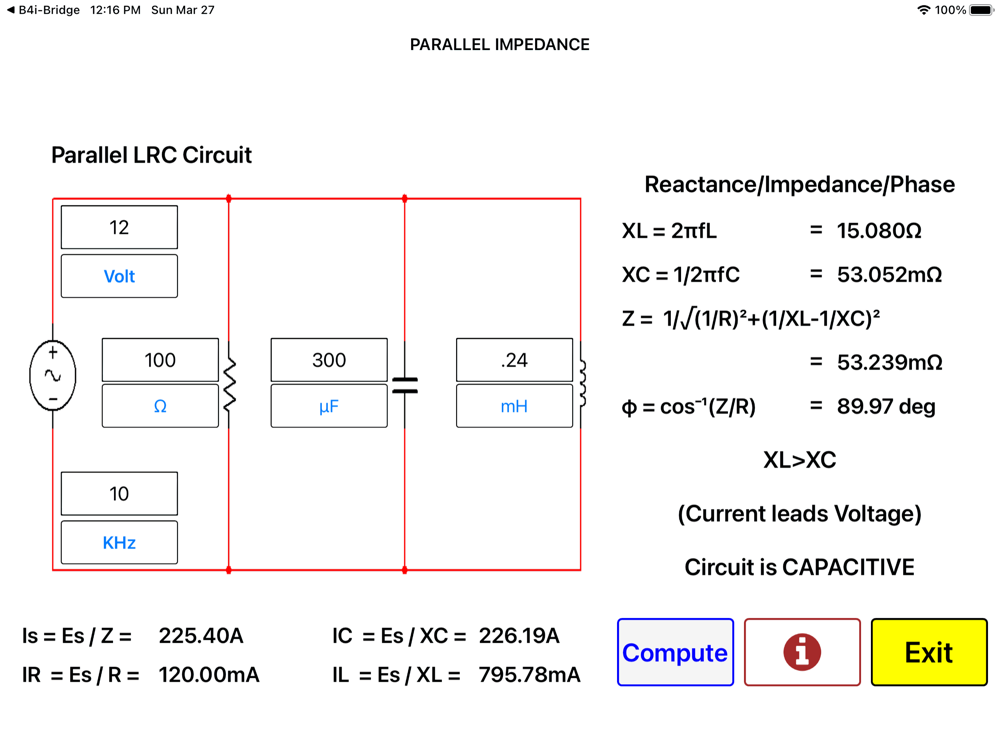

-- Parallel LRC



- RESONANCE
-- Series LRC
-- Parallel LRC
-- Missing Component Calculator



- FILTERS (Includes circuits and frequency response graphic)
-- Low Pass (RC & RL)
-- High Pass (RC & RL)
-- Band Pass (RC)
-- Band Reject (RC)
-- Band Pass (Series Resonant)

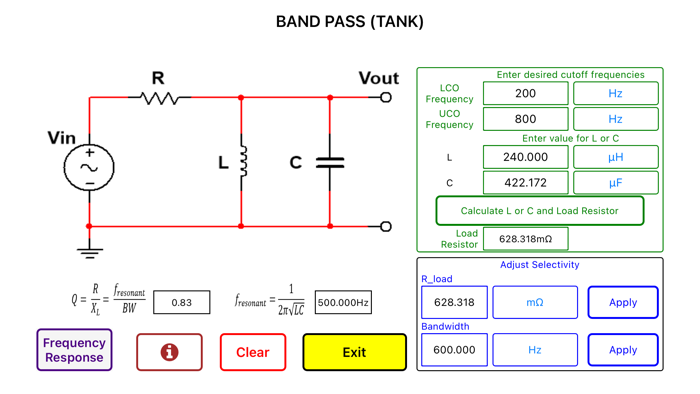

-- Band Reject (Parallel Resonant)



- TIME CONSTANTS

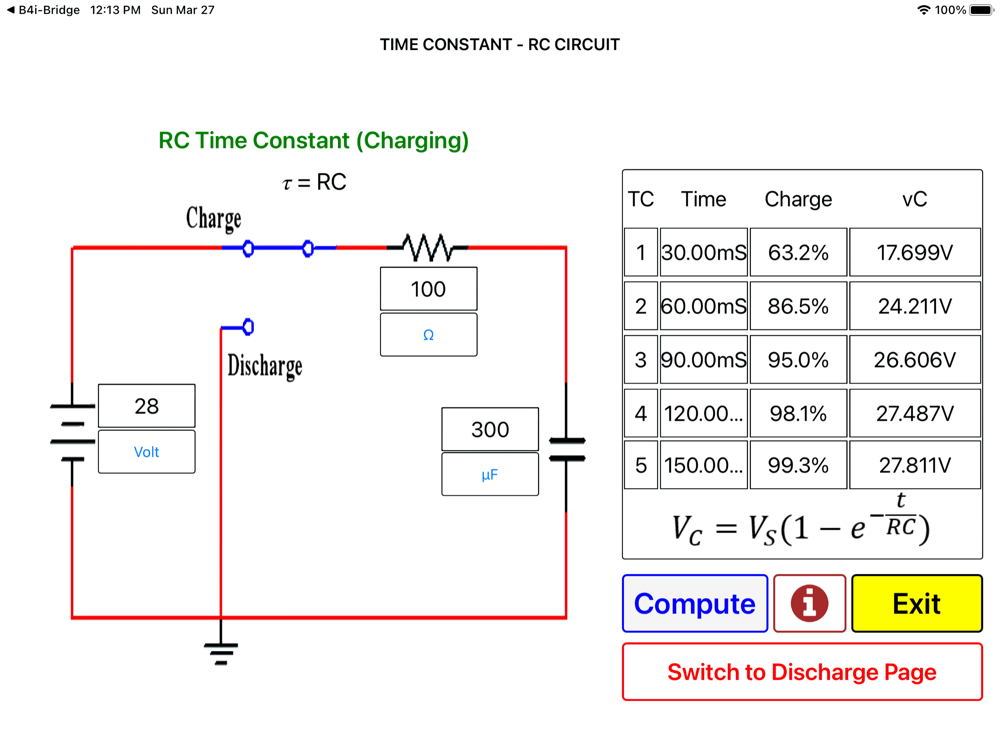

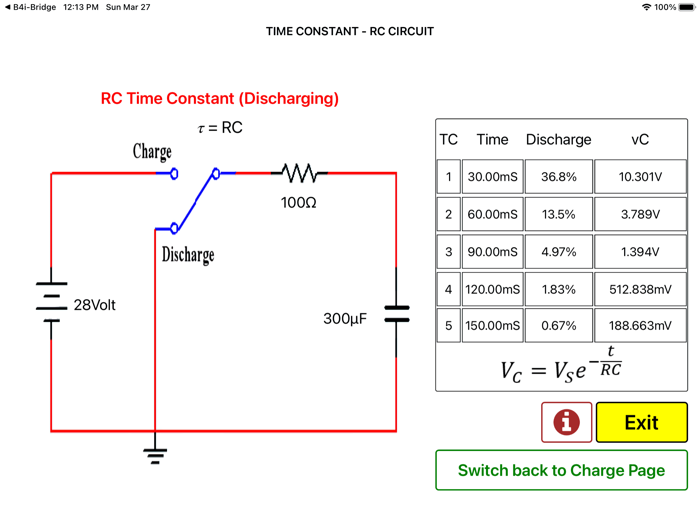

-- RL/RC Charging/Discharging

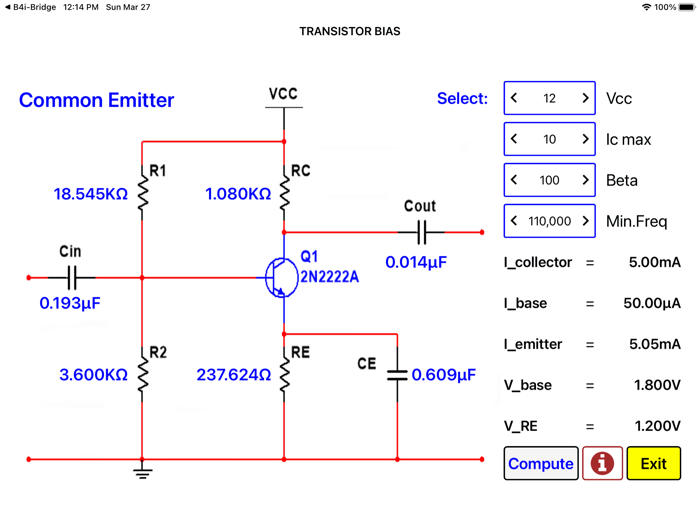

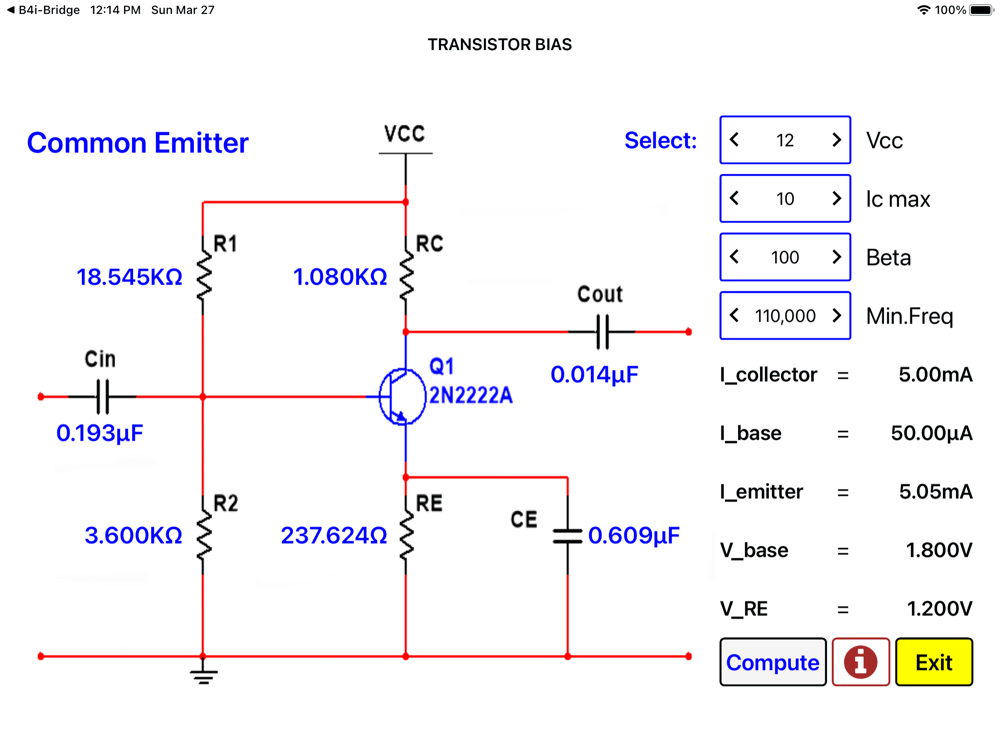

- TRANSISTOR BIAS
-- 2N222 (Bipolar Junction Transistor)



- OSCILLATORS
-- Colpitts

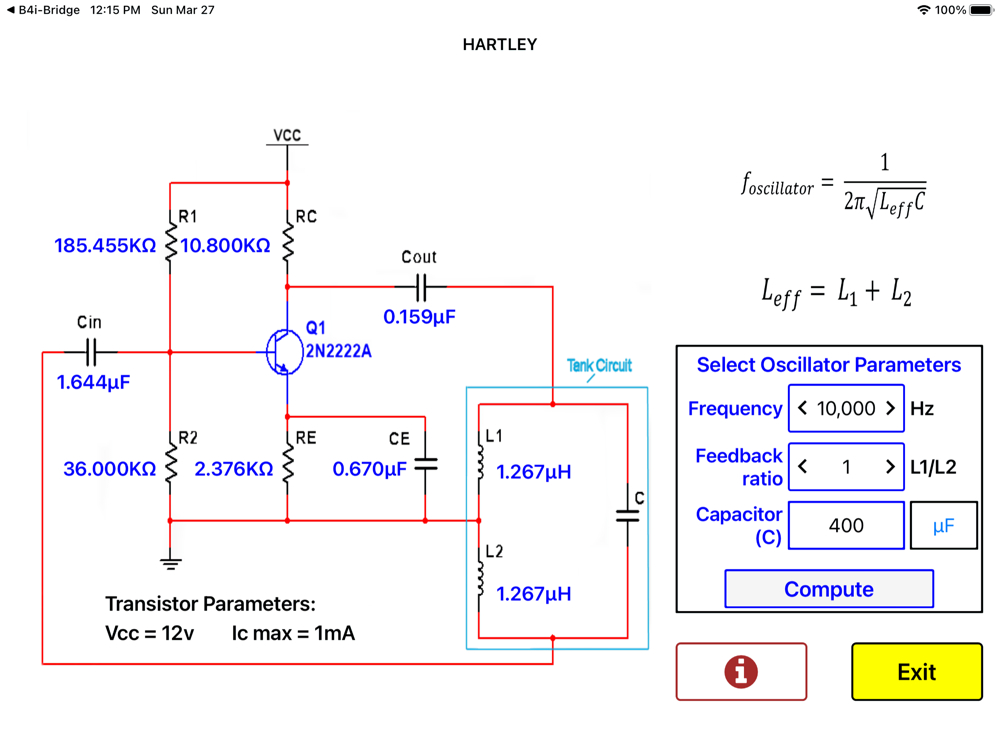

-- Hartley



DISCLAIMER
The user of Avionics Pro for any specific application without an independent verification of its accuracy does so at his/her own risk and assumes any and all liability resulting from such use. No warranty is offered as to the accuracy of results. Users should have a thorough understanding of the relevant theoretical criteria.
