A handy mobile reference tool for Piping Engineers, Mechanical Engineers, Designers, Draftsmen, Pipe Fitters, Students and more for the Oil & Gas Industry, Petrochemical & Manufacturing Plants as well as Design Engineering Consulting Companies.

This application covers the B16.5 & B16.47 Pipe Flanges (in-app purchase) - another Piping DataBase series.

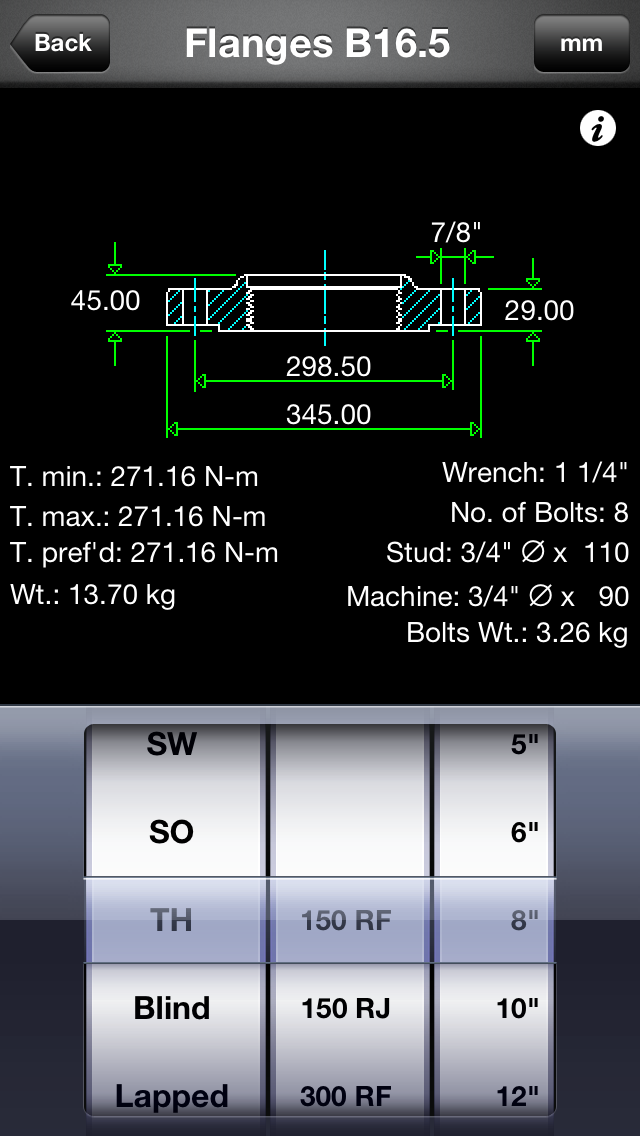

User interface is presented in an easy one page set up, interchangeable to both US Customary Units and SI Units by scrolling the pickers and touching the button switch.

Features:
*** Pipe Flanges in all class ratings***

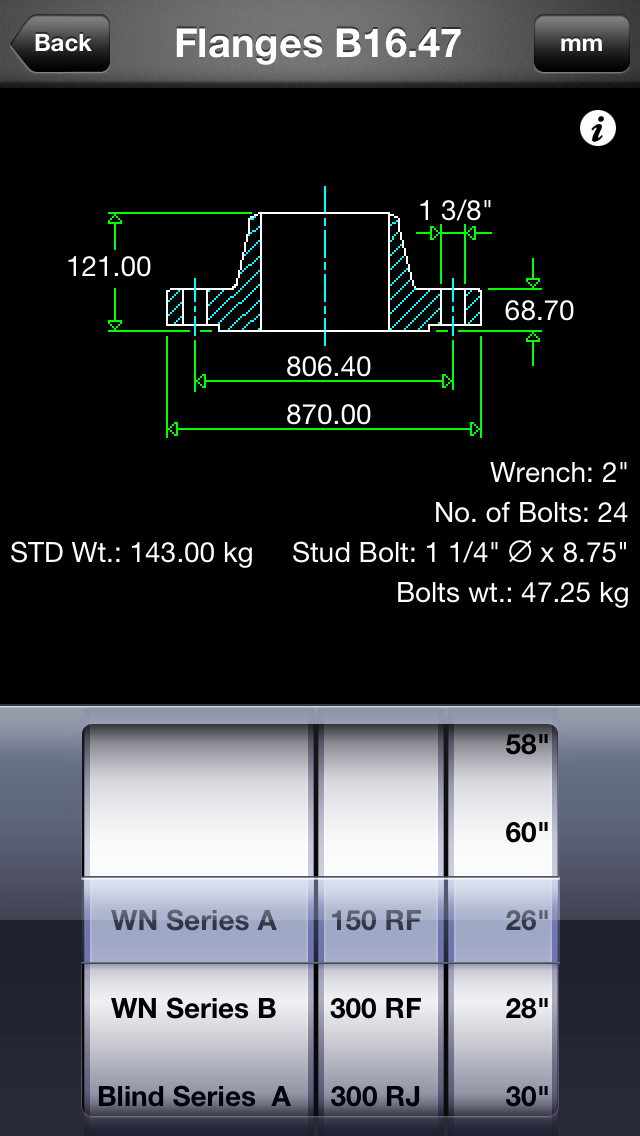

***including large diameter flanges (26" ~ above)[ in-app purchase - B16.47]***
*** Welding Neck, Threaded, Lapped, Blind, Slip-On & Socket Welding***
*** including no. of bolts, bolt diameter & length ***
*** Raised Face (RF) & Ring Type Joints (RTJ) ***

Note:
More piping components at Piping DataBase – Xtreme: includes Pipe Schedules, Fittings, Valves, Line Blanks, Branch Connections and Flanges. All in one app!
