Welcome to the MOSFET Handbook app.

This app will guide you to know, choose, select and design your next board masterpiece using that MOSFET you were not able to find.

With this app you can update the transistor informations and share it with other app users.

Which MOSFET shall I use? That one I found is the good one?

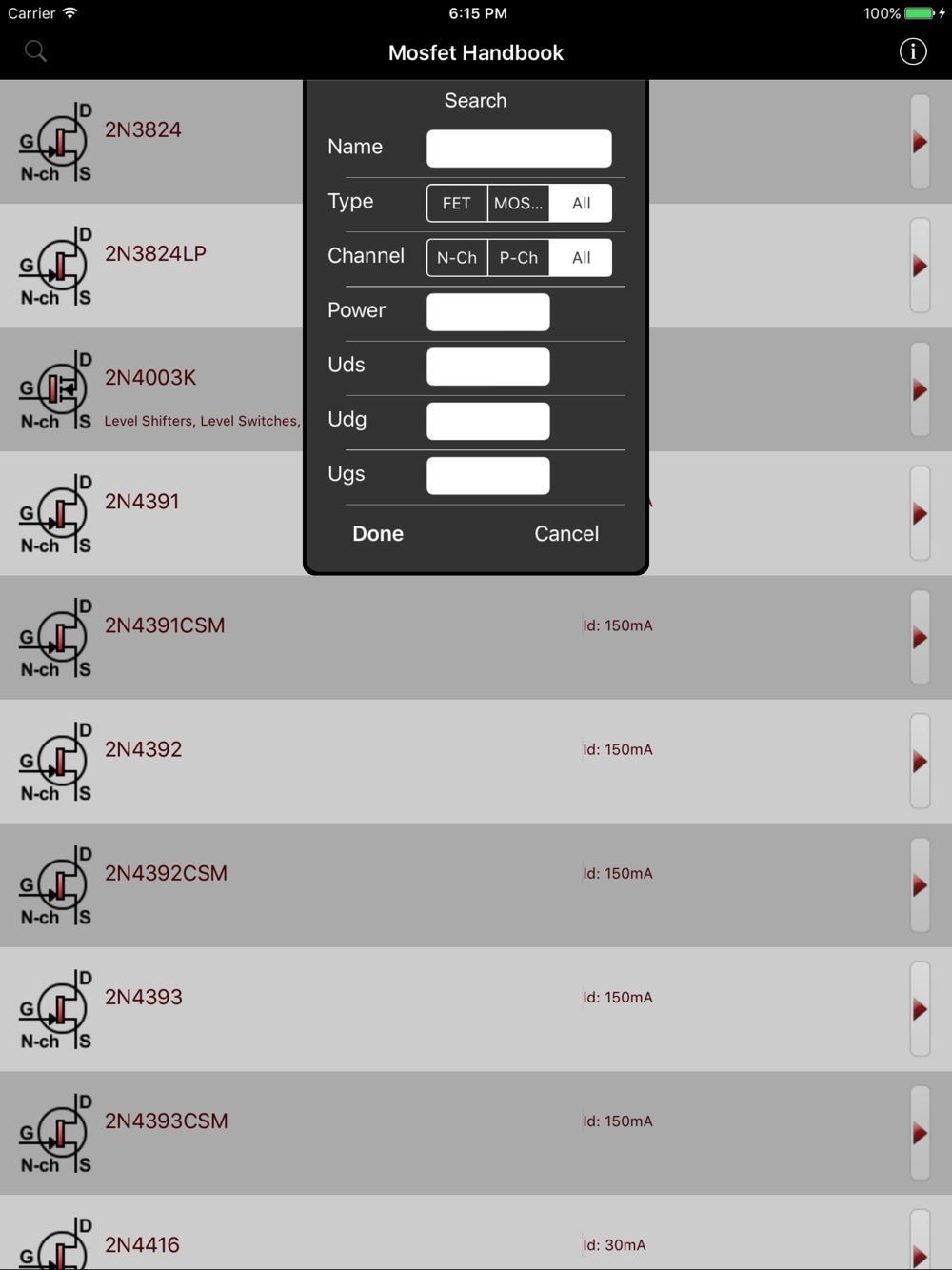

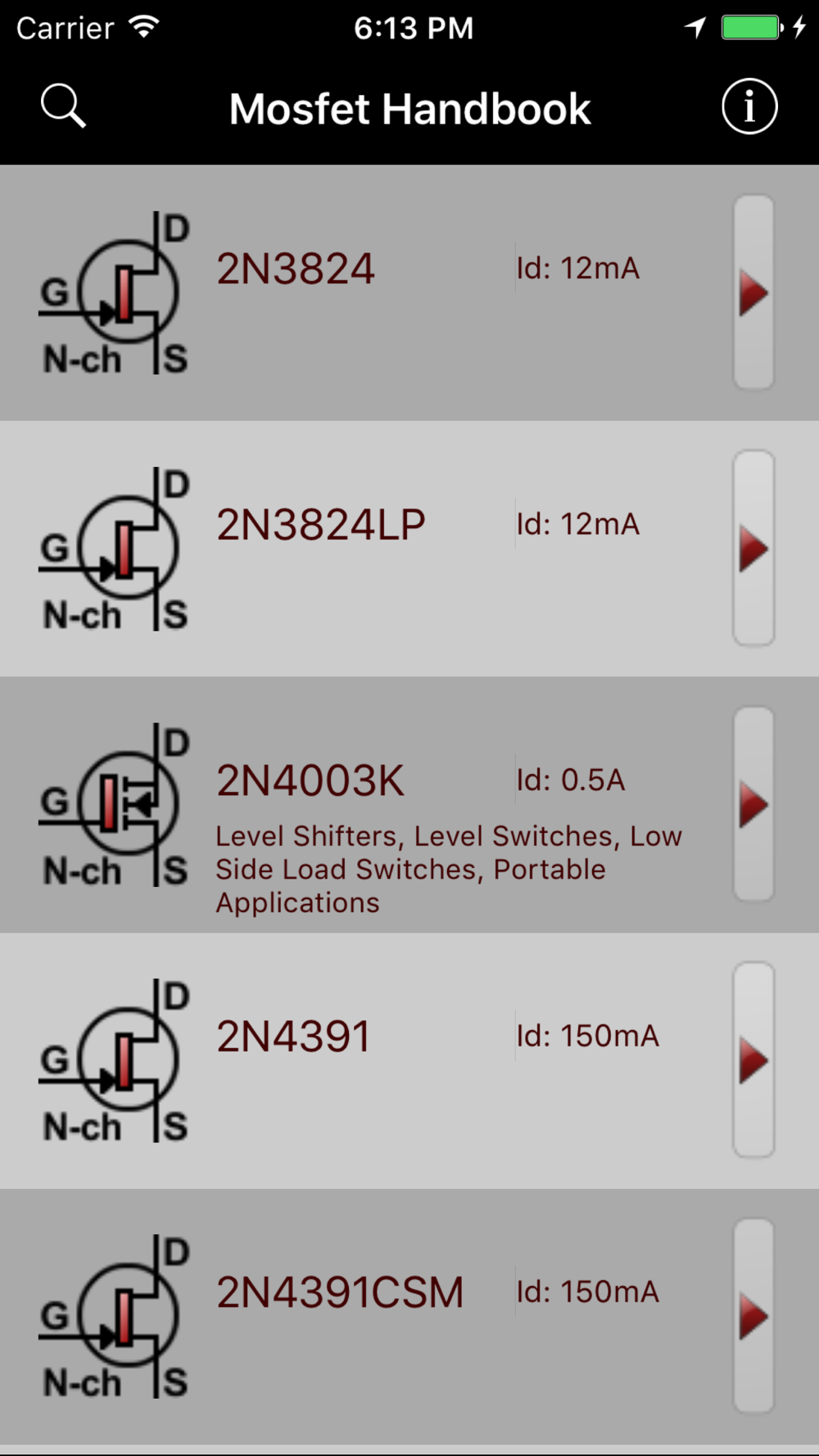

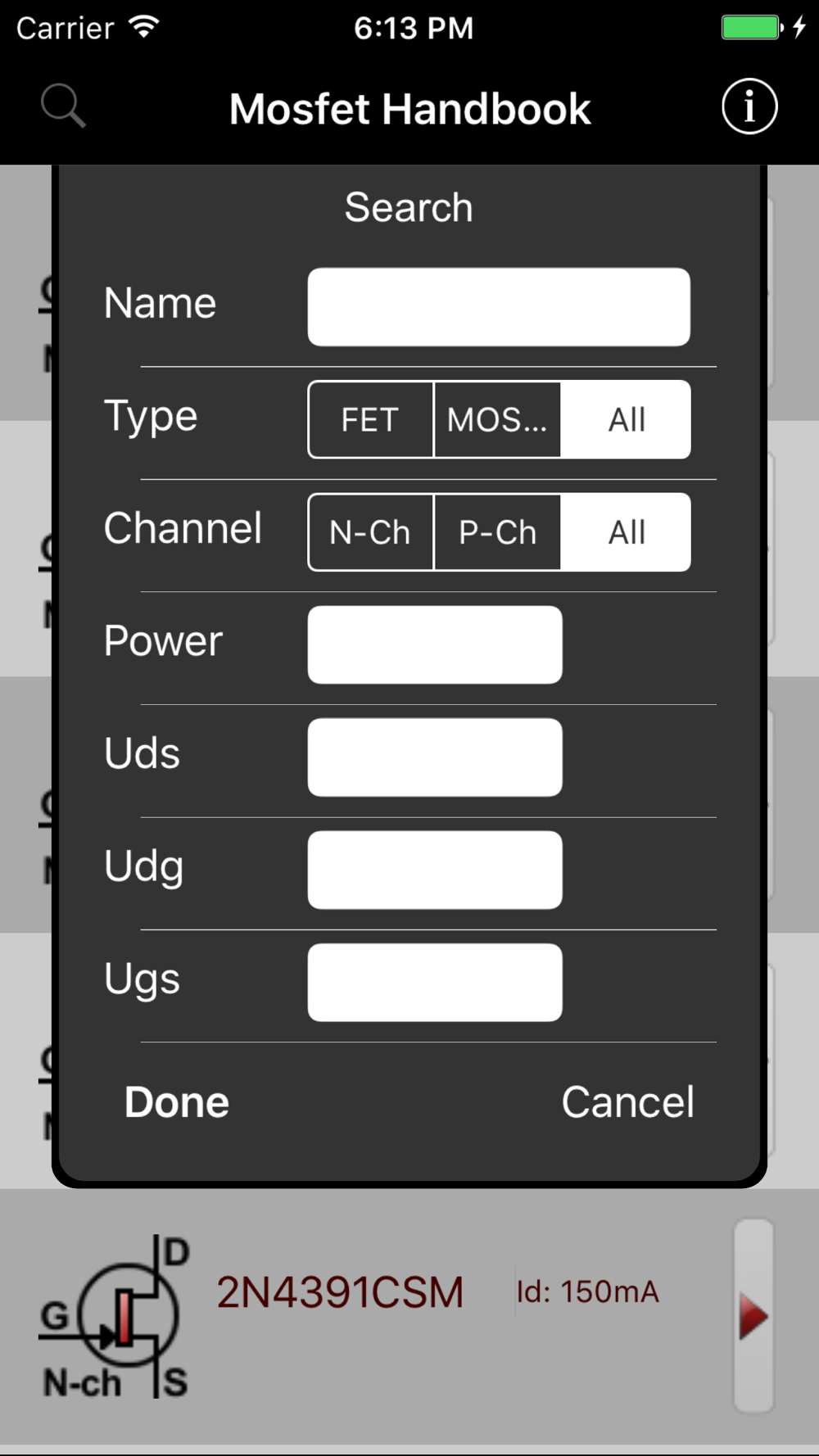

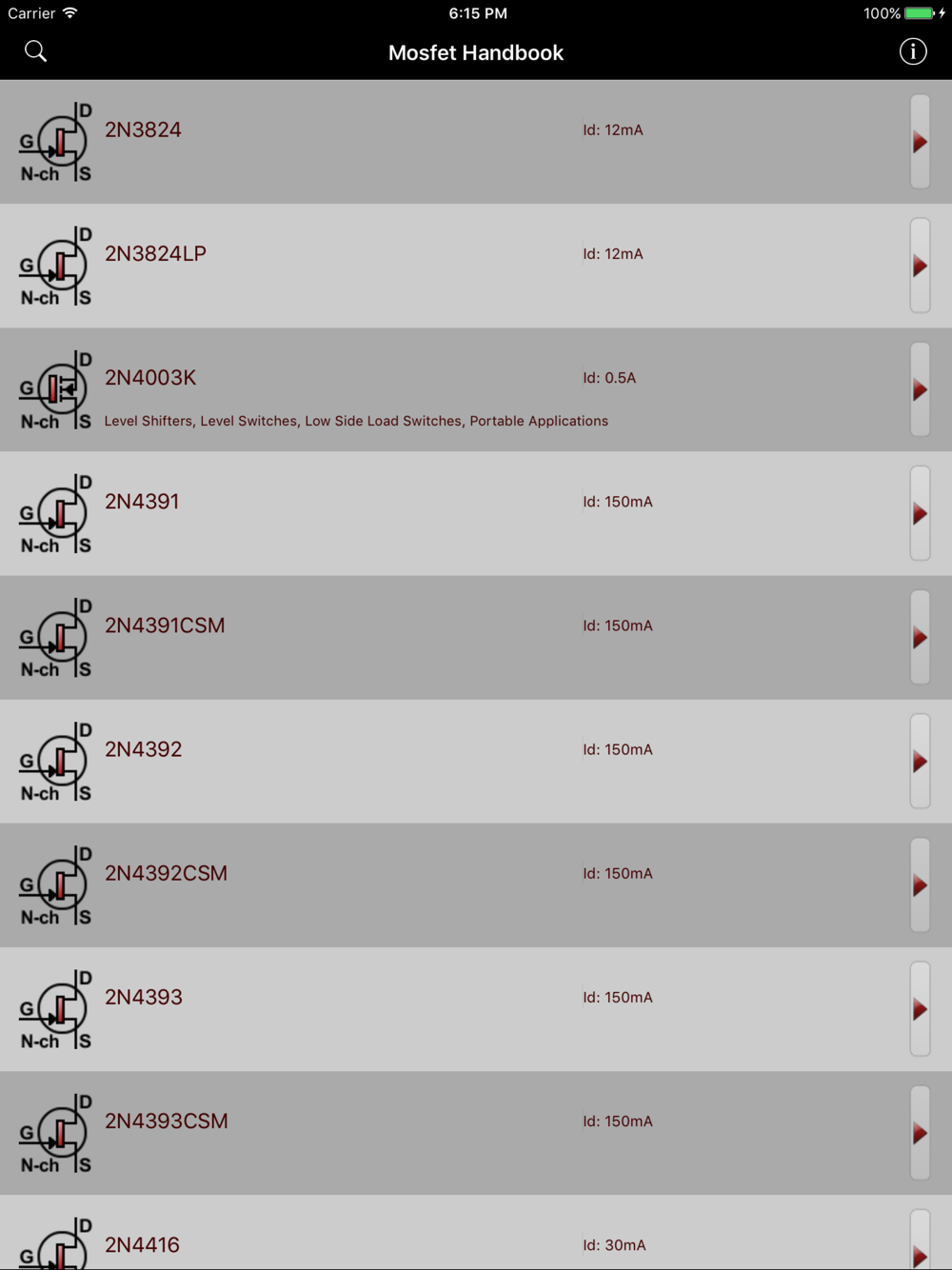

Browse and search in more than 16.000 different kind of MOSFET and compare it with the components you need.

These are the series supported and present in this fantastic catalog app:

2N,2P,2S,3L,3N,3S,3U,40,4N,5L,75,7N,8N,A4,AL,AO,AP,AT,AU,BB,BF,BL,BM,BS,BU,BX,C2,CE,CP,DK,DM,EC,EF,EK,EM,F5,FA-FD,FK-FM,FQ-FT,FW,GF,GM,GW,H5,H7,H8,HA,HE,HI,HN,HP HS,HU,IP,IR,IT,IX,J1-J3,JA,KF,KP,LK,LS,MC,ME,MG,MK MN,MP,MT,NC,ND,NI,NT,NU,NV,NX,OM,PH,PM,PN,PS,PT,R4-R6,R8,RA,RC,RF,RH-RM,RP-RX,RY,RZ,S2,
SC,SD,SF,SG,SI,SJ,SK,SM,SP,SS,ST,SU,SI,TA,TF,TJ,TK,TN,TP,TT,U1,VB,VE,VH,VK,VM,VN,VW,WP,WT,XP,ZD,ZV,ZX

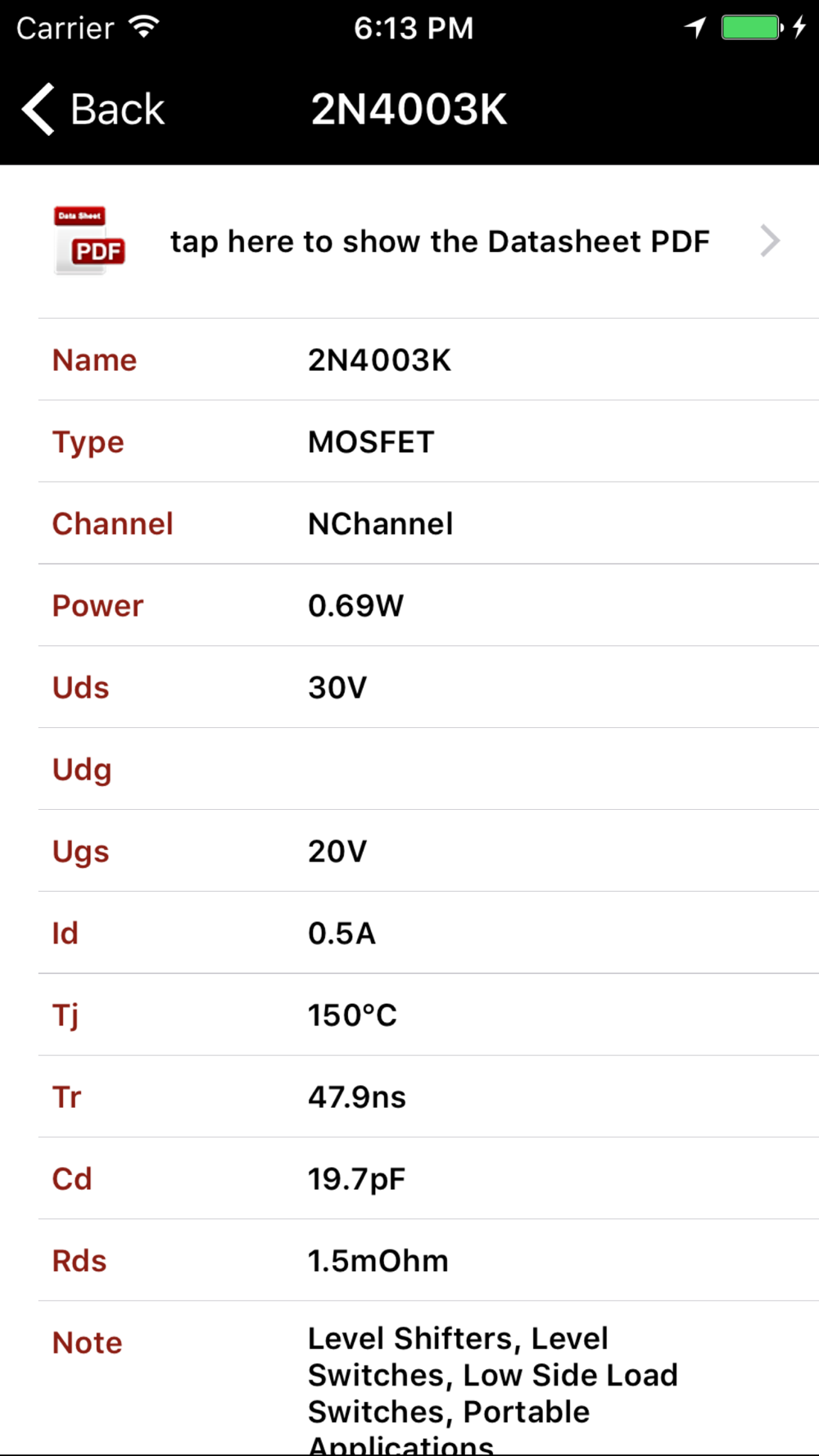

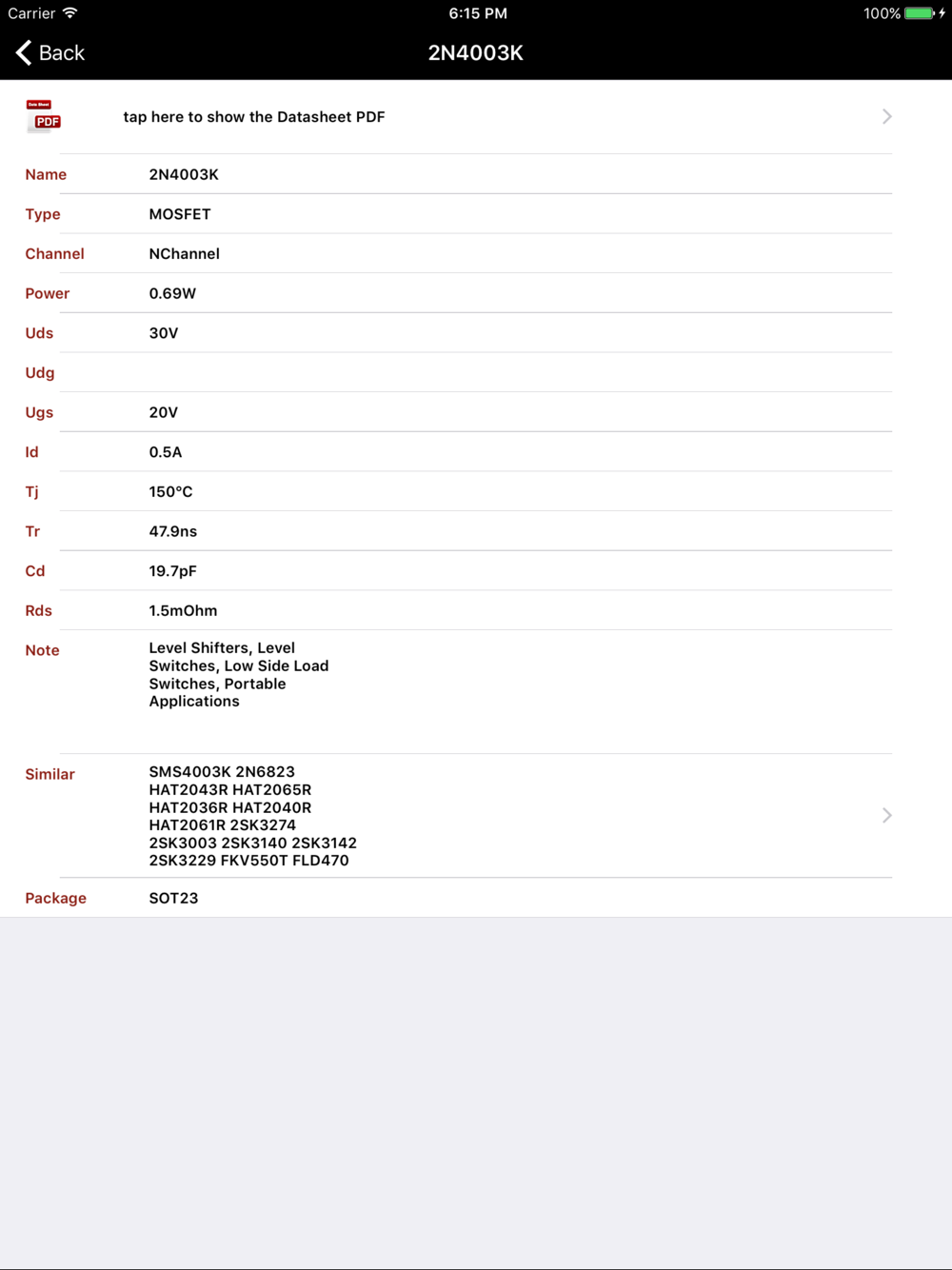

You will find information about:

- Name and Code
- Maximum power dissipation (Pd)
- Maximum drain-source voltage (Uds)
- Maximum drain-gate voltage (Udg)
- Maximum gate-source voltage (Ugs)
- Maximum drain current (Id)
- Maximum junction temperature (Tj)
- Rise Time (tr)
- Drain-source Capacitance (Cd)
- Maximum drain-source on-state resistance (Rds)
- Package type (no image)
- Similar

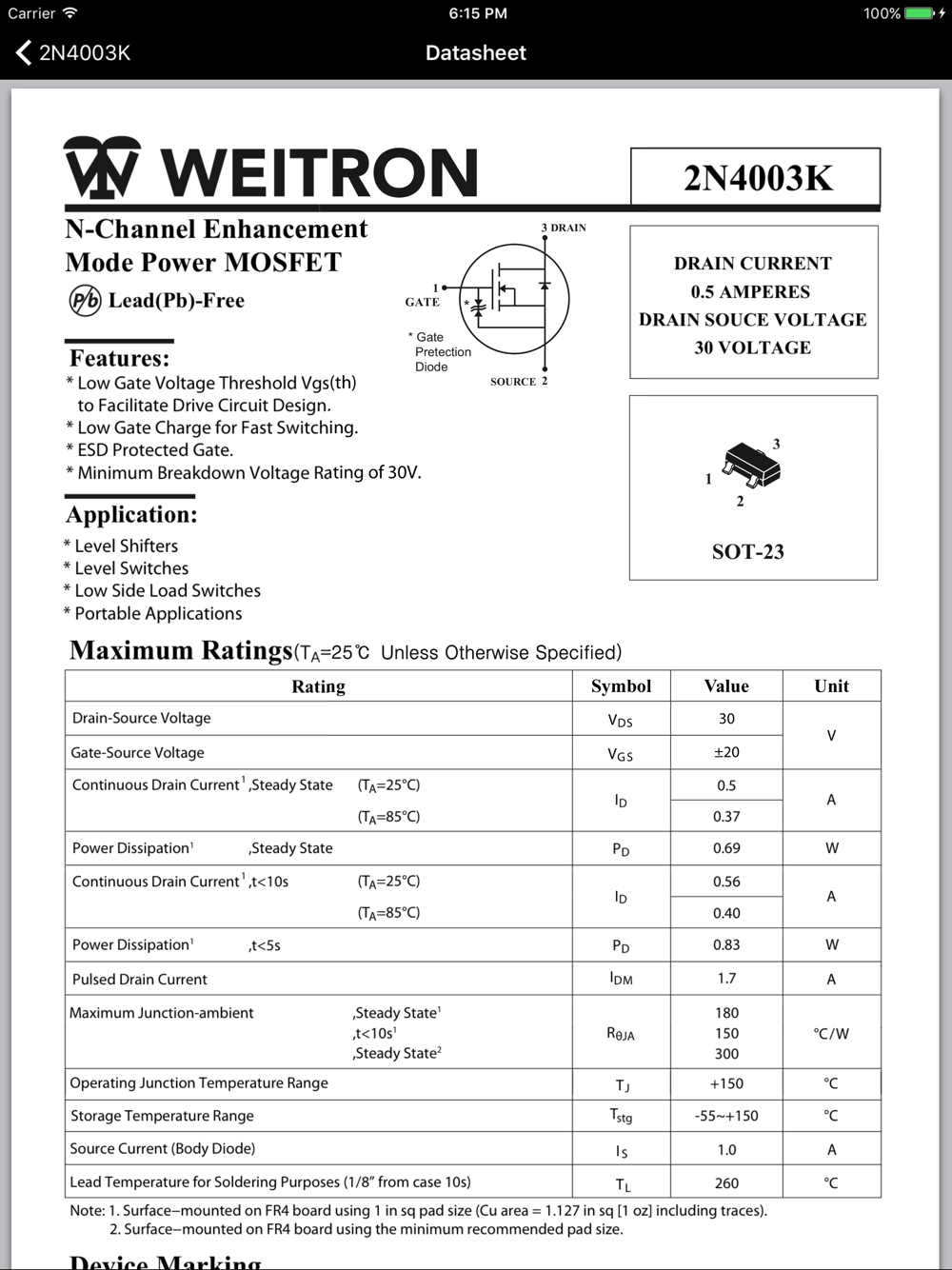

- Datasheet online (requires an Internet Connection)

*** Don't forget to check also our Transistor Handbook application. The perfect companion of Mosfet Handbook.
Show More
Show Less
Mosfet Handbook 1.2 Update
2021-12-22 Version History
* supports for iPhone X screen size

~apps2relax.com
More Information about: Mosfet Handbook
Price: 3,49 €
Version: 1.2
Compatibility: Requires 8.0 or later
Bundle Id: com.apps2relax.mosfethandbook
Size: 4.98 MB
Release Date: 2013-01-18
Last Update: 2021-12-22
